Kit tab

The Kit tab (Vibration Clips) is the primary Studio workspace. Manage WAV haptic assets in the Library, assemble them into a Kit, and deploy that Kit to a device.

This is a reference for every control. For a first Kit, see Create your first Kit; for the authoring and deployment workflow, see Create and distribute a Kit.

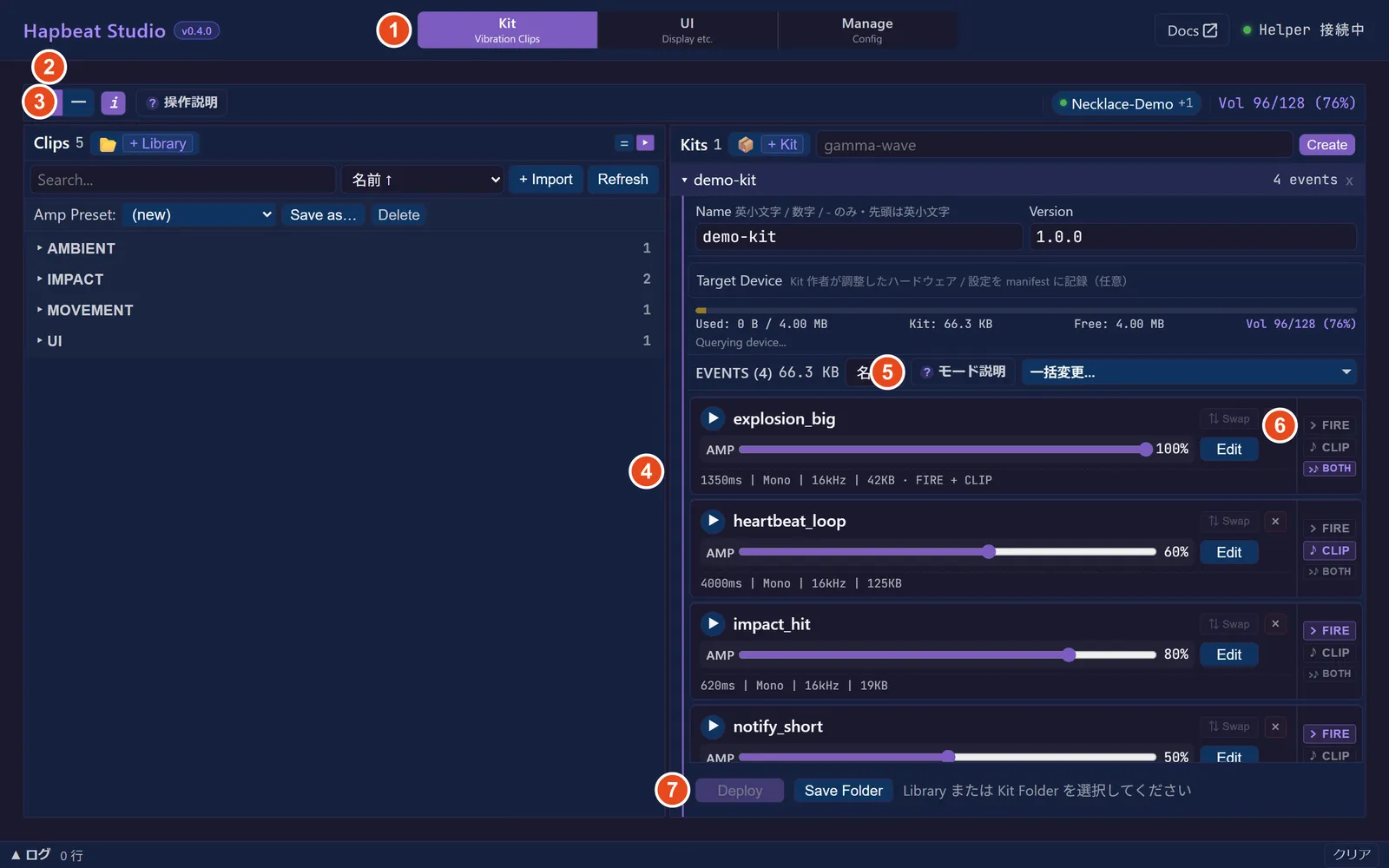

At a glance

1. Tabs — switch Kit / UI / Manage.
2. Toolbar — view layout, clip details (i), and interaction help (?).
3. Library — search, sort, import, and tune source clips.
4. Kit Editor — events in the selected Kit.
5. Mode help — compares FIRE / CLIP / BOTH.
6. Mode rail — chooses FIRE / CLIP / BOTH per Event.
7. Deploy / Save Folder — transfer to a device or export to a folder.

Layout and common toolbar

The Kit tab has two panes: Library (left / top) and Kit Editor (right / bottom).

Button	Mode	Layout
⊥	side	Library left, Kit Editor right
─	stacked	Library above, Kit Editor below; drag the divider to resize

The selected view persists. The toolbar also provides:

Control	Purpose
view mode (⊥ / ─)	Places Library on the left or top.
i	Toggles clip metadata: duration, channels, sample rate, size, and Note.
?	Opens mouse / keyboard interaction help.
DevicePill	Shows the connected-device state.
Vol pill	Shows connected device volume as Vol {wiper}/128 ({percent}%).

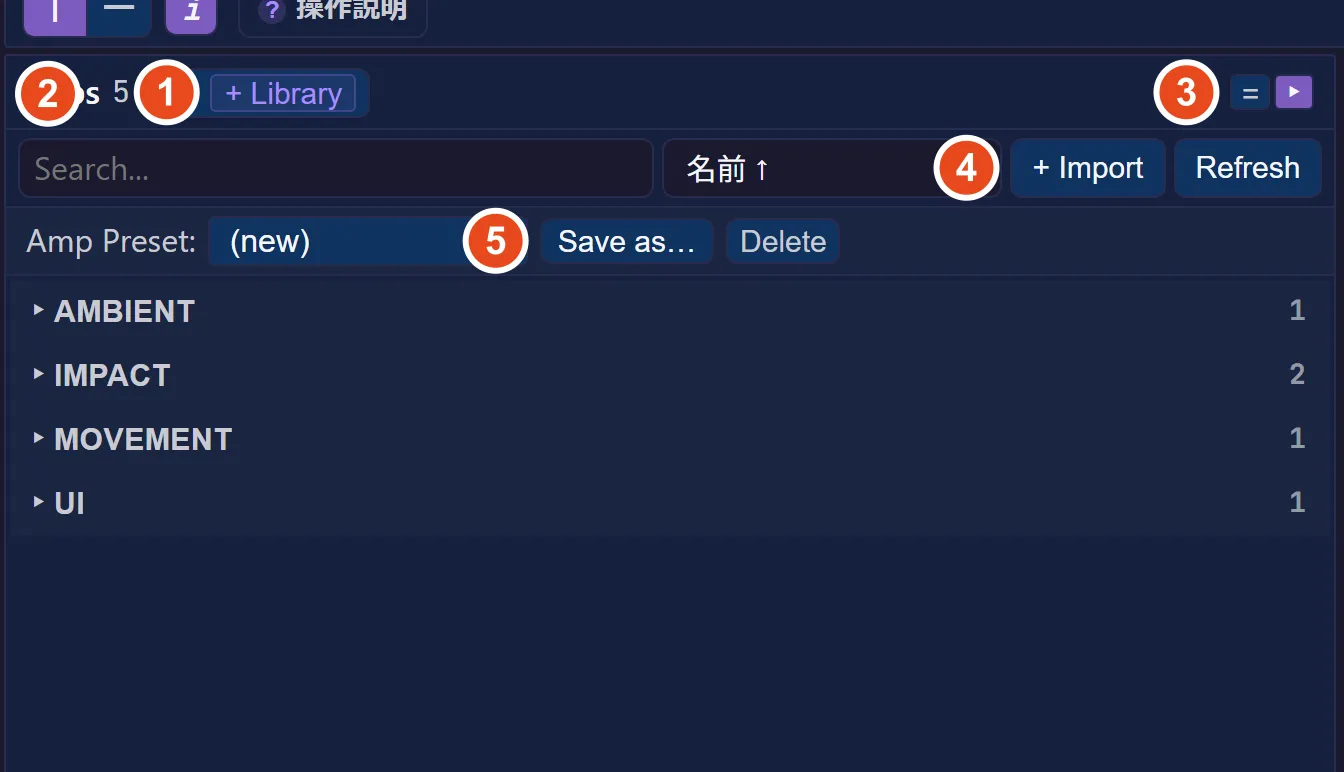

Library

The Library lists source haptic WAV files. Studio imports them from the chosen Library folder.

Folder and toolbar

• Library folder: choose the folder containing source files. Studio reads and writes clips/ and metadata there. Use + Library when it is unset; use ⇄ to change it or × to clear it.
• Search: filters by name, tag, or group.
• Sort: name ascending / descending, modified newest / oldest, or duration shortest / longest. The selection persists.
• + Import: imports WAV, mp3, ogg, flac, aac, or m4a from the file picker. Multiple imports show progress.
• Refresh: rescans clips/ for additions and removals. Studio also rescans when the window regains focus.
• Flat / Tree: switches between a flat list and grouping by the source-folder structure.

Amp presets

The Amp preset bar saves and applies all Library libraryIntensity settings at once.

• Choose (new) to reset every clip to Amp 0.5, or choose a saved preset for immediate application.
• Save as… stores the current settings under a new preset name (default amp-YYYYMMDD; replacing an existing name asks first).
• Delete removes the selected preset after confirmation.

Clip cards and Edit

Element	Action
▶ / ■	Play / stop. With Helper and a device connected, this plays haptics; otherwise it previews browser audio.
Name	Click to rename. Allowed: lower-case English letters, digits, -, _.
Amp slider	Baseline haptic intensity, 0–100% in 5% steps; click the number for direct entry.
+ Kit	Adds to the active Kit; disabled with no active Kit.
Edit	Opens Name / Note / Group / Tags, Swap, and Archive.
× Archive	Moves the clip to clips/archive/; it is hidden in Studio and reappears if moved back.
⇅ Swap	Swaps clip name and Note; disabled when Note is empty.

Turn on i to show duration, Mono/Stereo, sample rate, file size, and Note beneath each card. Drag a clip to the Kit Editor to add it.

The Edit dialog supports Name (max 64, lower-case / digits / - / _), free-form Note, Group, chip-style Tags, Swap, and Archive. Imported files use their original filename as Note; Notes appear on card hover.

Kit Editor

The Kit Editor lists events in the selected Kit.

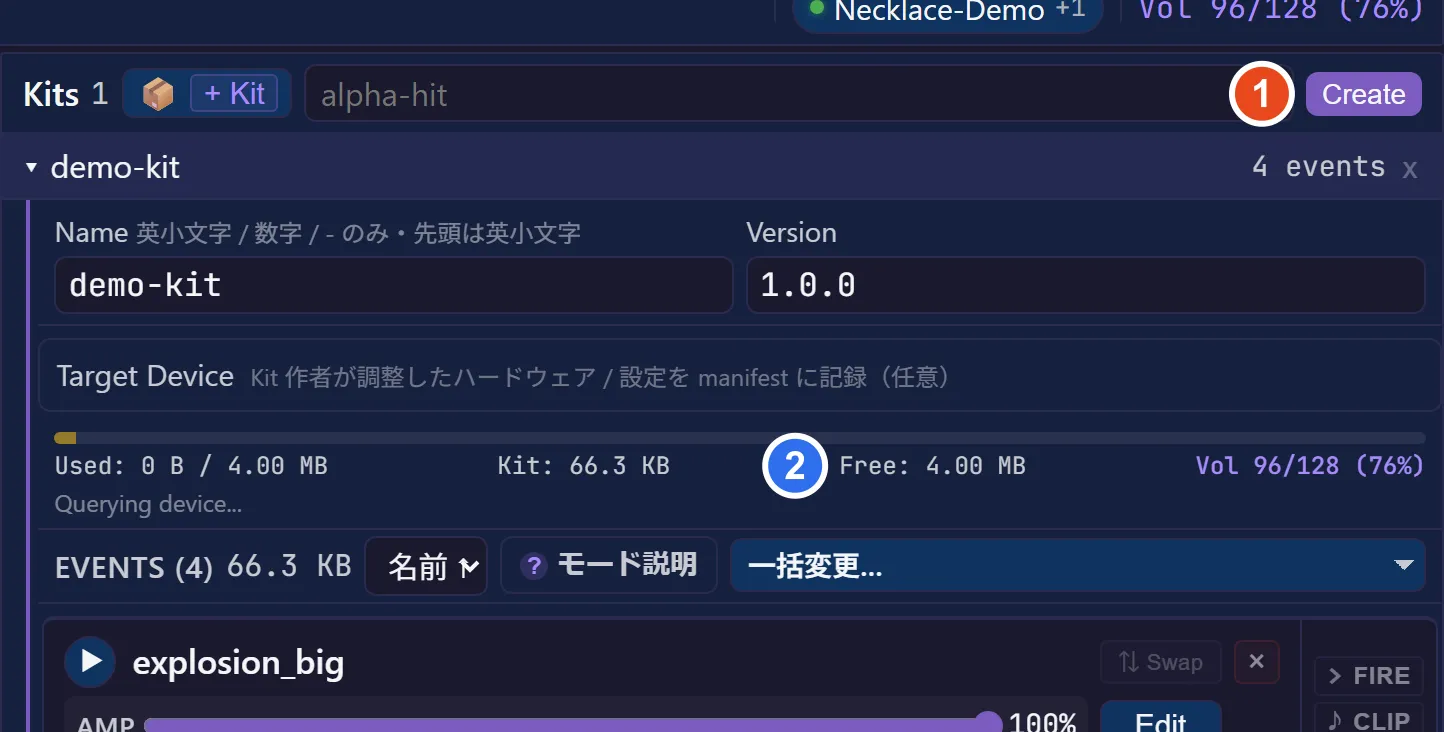

• Kit folder is the output location for manifest.json, install-clips/, and stream-clips/. When unset, Studio creates <kitId>/ under the Library. Choose a Unity Assets/.../Kits/ folder when the Unity SDK should read the Kit directly.
• Create uses the entered Kit name. A Kit name is also its folder name, manifest.name, and Event ID prefix; it follows ^[a-z][a-z0-9-]*$.
• Name is editable with the same rule; Version follows semver convention but is not enforced.
• Target Device is optional metadata: Board, minimum firmware, and baseline volume. ⟳ Import from device reads the current connected-device value.
• The Capacity meter shows flash used by FIRE install-clips/. It warns in red above available capacity, but deployment remains possible. It is an estimate without a connected device.

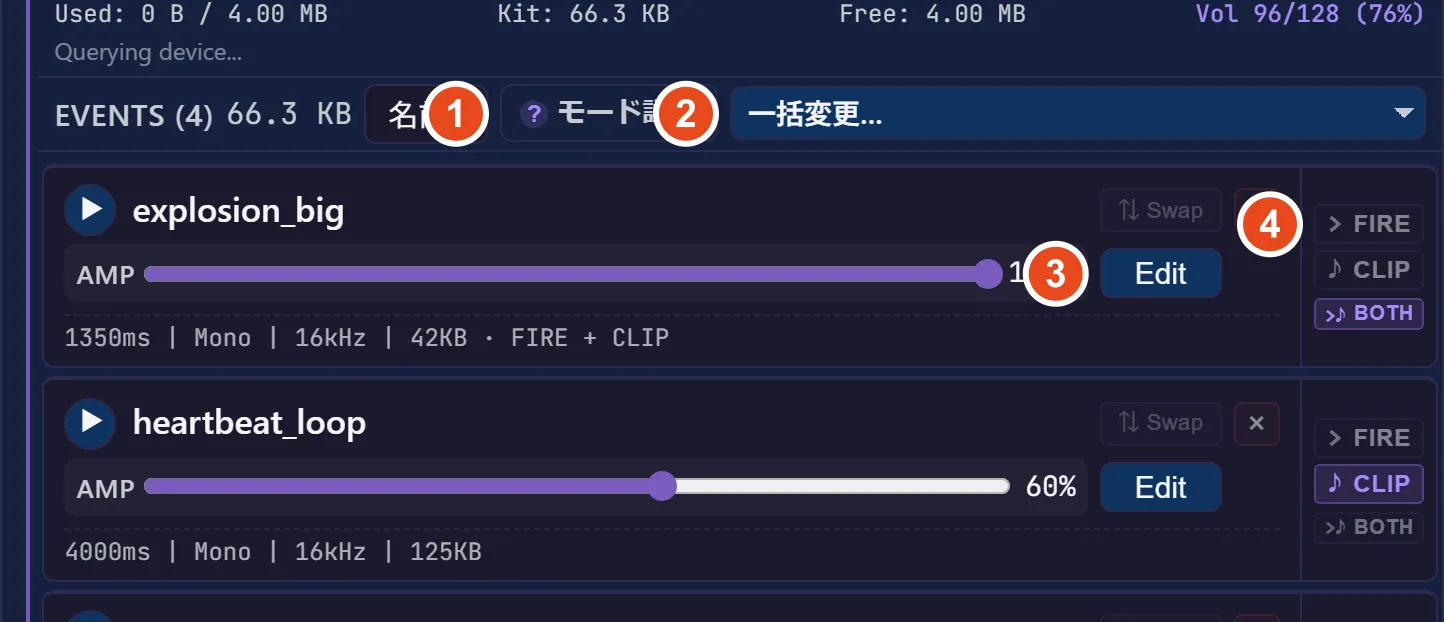

Events and playback mode

The Events header shows count and Kit capacity. It adds insertion-order sorting to the Library sort choices, a ? mode reference, and a bulk selector that changes every Event to FIRE, CLIP, or BOTH.

Each Kit Event is an independent copy of the Library clip card. Changing Name, Amp, or Note in Library later does not change the Event. Remove deletes only the Event, never the Library source.

Display	Symbol	manifest value	Main use
FIRE	>	['command']	Short one-shots and production use. Plays device-installed WAV with low latency and offline support.
CLIP	♪	['stream_clip']	Long material, dynamic modulation, and prototyping. SDK streams WAV over UDP.
BOTH	>♪	['command', 'stream_clip']	Compare both during development. Same base Event ID exists in both events and stream_events.

Changing a mode, including bulk change, stops any preview. The Event Edit dialog offers Name, Note, read-only derived Event ID (<kit>.<clip>), Swap, and Remove from kit.

Deploy and Save Folder

Button	Action	Requires
Save Folder	Writes manifest.json and WAV files to the Kit folder; does not send to a device.	Library and Kit folders
Deploy	Builds the same output and transfers its zip through Helper.	Library / Kit folders, Helper, and an online playback device

Unchanged audio skips WAV re-encoding, so Amp-only changes are fast. Status beside the buttons reports missing folders, invalid Kit name, saving, saved, and device readiness. With multiple devices, Studio transfers to each in turn and shows per-device progress.

Deployment is blocked until a Kit folder is selected, all Events have non-empty Event IDs, and IDs match the contracts form category.name using [a-z0-9_-].

Persistence and keyboard controls

Data	Storage
Clip WAV and Kit output	Local Library / Kit folder (source of truth)
Clip audio and encoded WAV cache	Browser IndexedDB
Clip / Kit metadata and Amp presets	JSON in the Library folder (clips-meta.json, kits-meta.json, amp-presets.json)
View, sort, and info-toggle UI state	localStorage

Disk changes require Refresh or returning focus to the window. Kit metadata auto-saves after edits; Kit-folder WAV / manifest change only after Save Folder or Deploy.

Keyboard controls work only while a pane has cursor / focus, not while editing text:

Key	Library	Kit Editor
↑ / ↓	Move selection	Move selection
← / →	Amp − / + 5%	Amp − / + 5%
Space	Play / stop	Play / stop
Enter	Add selected clip to active Kit	—
Delete / Backspace	—	Remove selected Event from Kit
